Amprobe ACDC-100 TRMS 1000A AC/DC Clamp Meter

Amprobe ACDC-100 TRMS 1000A AC/DC Clamp Meter

  • True-rms
  • Measures AC current to 800A and DC current to 1000A, AC/DC voltage to 600V, plus capacitance, and resistance
  • Continuity beeper quickly identifies shorts and opens
  • Relative zero mode displays the difference between the actual reading and a stored reference value and may be used with any function or range
  • Data hold freezes the reading on the display for further analysis
  • Diode test quickly finds voltage drops
  • MAX capture function measures inrush current (30 mS response)
  • Combines user friendly features such as a large, easy to read backlit digital display, auto power-off to conserve battery life, and a “third hand” test probe holder
  • Rubber over-molded case absorbs shock and provides built-in probe storage
  • Accommodates conductors up to 2.0″ (50mm) in diameter
  • CAT III, 600V rated
  • Includes deluxe carrying case, test leads, batteries (installed) and users manual



SKU: 2740465 Category:

Product Highlights

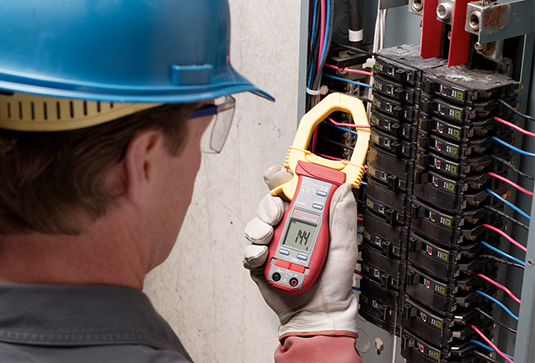

The ACDC-100 TRMS 1000A digital clamp meter offers superior accuracy, quality and reliability with all the basic measurement capabilities technicians need in an AC/DC current clamp meter. Use it to measure AC current to 800A, DC current to 1000A, and AC/DC voltage from 400.0 mV to 600V.

Its large jaws accommodate conductors up to 2″ (50 mm) in diameter and its enhanced ergonomic design make it a great choice for a clamp with professional digital multimeter capabilities.

Specifications

FEATURE ACDC-100 ACDC-100 TRMS
True-rms
AC Current 400.0 A, 800 A
DC Current 400.0 A, 1000 A
Voltage AC/DC 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 600 V
Resistance 400.0 O, 4.000 kO, 40.00 kO, 400.0 kO, 4.000 MO, 40.00 MO
Continuity
Capacitance 500.0 nF, 5.000 µF, 50.00 µF, 500.0 µF, 3000 µF
Accommodates conductors up to 2.0 (50 mm) in diameter
Specifications
True-rms: N/A
DC Current: 400.0 / 1000 A Accuracy: +/-(1.5% Rdg + 4 LSD) @ 0 to 800A **
AC Current: 400.0 / 800 A Accuracy: +/-(1.5% Rdg + 5 LSD) @ 0 to 600A, 40 to 100Hz **
AC Voltage: 400.0 mV 4.000 / 40.00 / 400.0 / 600V Accuracy: +/-(1.5% Rdg + 4 LSD) @ 4V to 400V ranges , 50 to 500 Hz**
DC Voltage: 400.0 mV 4.000 / 40.00 / 400.0 / 600V Accuracy: +/-(0.5% Rdg + 3 LSD) @ 4V to 400V ranges **
Resistance: 400.0 Ohms 4.000 / 40.00 / 400.0 kOhms 4.000 / 40.00 MOhms Accuracy: +/-(0.6% Rdg + 4 LSD) @ 4 to 400 kOhms ranges **
Capacitance: 500.0nF / 5.000 / 50.00 / 500.0 / 3000 uF Accuracy: +/-(3.5% Rdg + 6 LSD)

For complete specs please download the product datasheet under the “Resources” tab.

What’s Included

Description
  • TRMS and Display Backlight
  • Relative zero mode
  • Auto power off
  • MAX capture function for inrush current measurements (30 mS response)
  • Large, easy to read LCD display

Included Accessories:   Deluxe carrying case, test leads, batteries (installed), users manual

Resources

Data Sheet »
Product Manual »

5 reviews for Amprobe ACDC-100 TRMS 1000A AC/DC Clamp Meter

  1. Bryan44

    This product is my “go to” meter for 99% of my needs

    I have owned this clamp meter for several years now and am always impressed with the ease of use and accuracy of the readings.
    I have used many other multimeters and clamp meters before, this one offers great value at a great price.

    ✔ Yes, I recommend this product.

  2. Joe22

    Item works ok

    Problem I find with this clamp on meter is the slide switch
    is hard to adjust what scale you want to select. Its very easy
    to move, bu easily slides over the position you actually want. It
    would be better if it were a rotary switch.

    ✘ No, I do not recommend this product

  3. DougL

    Great Functionallity

    A great reliable meter able to test several different application

    ✔ Yes, I recommend this product.

  4. jr64

    bigger is better!

    as an industrial and commercial electrician for the last 25 + years, I have literally profited from the use of Amp probe meters. this particular model has the wider jaw so you can easily test wires greater than 500 kcm. Reliability, support and ease of use are some of the key features you will enjoy. It never hurts to have the edge over ethe guy standing next to you.

    ✔ Yes, I recommend this product.

  5. JoeGlider

    Excellent meter, very reliable and accurately.

    I love this meter since the 1st day I bought it. It is very handy, have an excellent clear display and it is very accuarate, which fot the tipe of work I do it is very important. It is not too expensive and everybody should have one of this handy. I love all the features it offers including an ergonomic touch which make this meter the best meter of its kind.

    ✔ Yes, I recommend this product.
