Amprobe PK-110 Electrical Test Kit

Amprobe PK-110 Electrical Test Kit

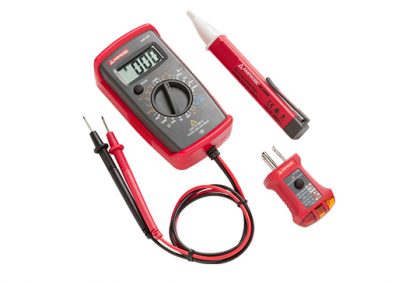

  • Residential electrical test kit includes AM-420 Digital Multimeter, VP1000 Non-Contact Voltage Probe, ST-102B Socket Tester with GFCI and all required batteries
  • Kit contains tools to measure voltage up to 300 V AC/DC, AC/DC current and resistance, capacitance and perform battery tests
  • RV Safety Testing: check RV pedestal outlets (20 A, 30 A, 50 A) for proper wiring and grounding, check for “hot skin conditions and proper wiring of outlets in your RV
  • Check for presence of voltage in receptacles, switches, extension cords and light fixtures
  • Verify proper wiring of GFCI (ground fault circuit interrupter) and standard US and Canadian wall outlets with a simple push of a button
  • UL and CSA listed for safety



SKU: 4394419 Category:

Product Highlights

Amprobe’s PK-110 Electrical Test Kit offers three electrical testers with testing functions suitable fora variety of residential applications. The kit includes the AM-420 Digital Multimeter, ST-102B Socket Tester with GFCI and VP-1000 Non-Contact Voltage Detector. From identifying voltage presence in outlets and switches to confirming proper wiring of GFCI breakers, the PK-110 kit boasts all the features needed to perform quick and safe voltage tests.

Specifications

FEATURE AM-420 AM-420
AC voltage 200.0 / 250 V +/-(1.5% rdg + 4 LSD) @ 45 Hz to 400 Hz
DC voltage 200 mV 2.000 / 20.00 / 200.0 / 250 V +/-(1.2% rdg + 2 LSD) @ 200 mV to 200 V
DC current 200.0 μA 2.000 / 20.00 / 200.0 mA +/-(1.2% rdg + 5 LSD) @ 200 μA to 20 mA
Resistance 200.0 Ω 2.000 / 20.00 / 200.0 kΩ 2.000 MΩ +/-(1.5% rdg + 5 LSD) @ 200 Ω to 200 kΩ
Continuity Beeps at ≤10 Ω, off at >70 Ω
Diode test Open-circuit voltage is around 1.5V. Normal voltage is around 0.5V to 0.8V for silicon PN junction.
Battery test 1.5 V, 9 V +/-(8.0% rdg + 1 LSD)
Data hold
FEATURE VP-1000
Operating voltage range 90 Vac → 1000 Vac, 50/60 Hz
Sensitivity Lights at approx. 10 mm (0.39 in) distance from a wire carrying 120 Vac
Operating temperature 0°C to +40°C (32°F to 104°F), ≤ 80% RH
Storage condition -10°C to +50°C (14°F to 122°F), ≤ 95% RH
Operating altitude 2000 meters
Power supply Two 1.5 V AAA batteries
Dimensions (LxWxH) 155 x 24.5 x 21.5 mm (6.10 x 0.96 x 0.85 in)
Weight Approx. 50 g (0.11 lb) with batteries installed
Safety compliance IEC 61010-1, UL 61010-1 2nd Ed. and CAN/CSA C22.2 No. 61010-1-04
EMC compliance IEC 61326-1
Certification cCSAus and CE
FEATURE ST-102B
Operating Voltage 110 – 125 Vac, 50 – 60 Hz
Wattage 0.3 W
Actuator Black button
Indicator Red LED, three lights, neon
Lamp Lens Colors One red, two amber
Six Conditions Indicated Open ground, open neutral, open hot, hot/ground reverse, hot/neutral reverse, correct
Safety Compliance C22.2 No. 160-M1985 / UL 1436 – 4th Edition
Certification cCSAus

For complete specs please download the product datasheet under the “Resources” tab.

What’s Included

Description
Amprobe PK-110 Electrical Test Kit

  • Accurately measure voltage up to 250V in receptacles, switches, extension cords and light fixtures with the AM-420
  • Easily and safely detect voltage presence between 90 and 1000 V with the VP-1000
  • Test receptacle wiring and confirm GFCI sockets are properly wired with push button with the ST-102B

Included accesories: User’s Manual, Batteries (installed)
