Amprobe IRC-110 Thermal Camera

(2 customer reviews)

  • Infrared heat map image blending at 0%, 25%, 50%, 75%, and 100%
  • Three selectable color palettes: grey scale, hot iron and rainbow
  • Center-point temperature measurement
  • Focus free lens
  • 20:1 Distance to Spot ratio
  • Adjustable emissivity from 0.10 to 1.00
  • Auto off function to save battery life
  • Selectable °F and °C temperature units
  • Joystick navigation
  • Hot and cold markers



SKU: 4909782 Category:

Description

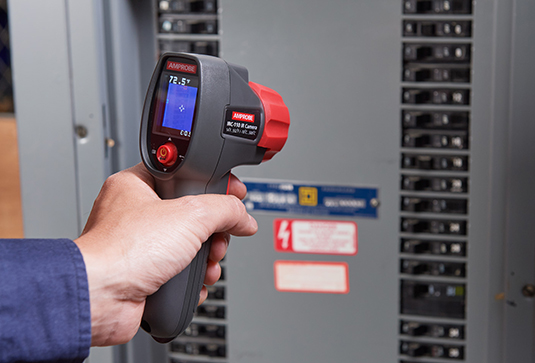

The Amprobe IRC-110 thermal camera, designed for the professional, is rugged with point-and-shoot functionality to give you a visual heat map image for quick and accurate identification of temperature related issues. Troubleshoot electrical connections, motors, HVAC and electrical, and insulation leaks around buildings to identify potential energy savings.

CE Certification RCM C Certification

Specifications

Features IRC-110 IRC-120
Built-in digital camera Yes Yes
Infrared heat map overlay Five blending modes: 0%, 25%, 50%, 75%, 100% Five blending modes: 0%, 25%, 50%, 75%, 100%
Data storage Yes
Laser sighting Yes
Flashlight Yes
UV light Yes
Color palettes Grey Scale, Hot Iron, Rainbow Grey Scale, Hot Iron, Rainbow
Field of view 33 ° x 33 ° 33 ° x 33 °
Focus system Focus free Focus free
IR temperature range 14 °F to 932 °F (-10 °C to 500 °C) 14 °F to 932 °F (-10 °C to 500 °C)
Distance to Spot ratio (D:S) 20:1 20:1
Emissivity 0.10 to 1.00 0.10 to 1.00
Display resolution 0.2 °F/0.1 °C 0.2 °F/0.1 °C
Hot and cold markers Yes Yes
Center point marker Yes Yes
Temperature units Selectable °F/°C Selectable °F/°C
Auto power off Yes Yes
General Specifications
Temperature measurement Yes, center point
Temperature range 14 °F to 932 °F (-10 °C to 500 °C)
IR accuracy (calibration geometry with ambient temperature 23°C ± 2°C) ≥ 32 °F (≥ 0 °C): ± 4 °F (± 2 °C) or ± 2 % of the reading, whichever is greater < 32 °F (< 0 °C): ± 6 °F (± 3 °C)
Display resolution 0.2 °F / 0.1 °C
IR repeatability ± 0.8 % of the reading or ± 2 °F (± 1 °C), whichever is greater
Temperature coefficient 0.1 °C/°C or ± 0.1 %/°C of the reading, whichever is greater
Distance to spot 20:1
Minimum spot size 0.31 in (8 mm)
Response time (95 %) < 125 ms
Spectral response 8 μm to 14 μm
Emissivity Digitally adjustable from 0.10 to 1.00 by 0.01
Visual image with infrared heat map overlay Five blending modes (0%, 25%, 50%, 75% and 100%)
Visual to IR effective image alignment ≥ 10 inches
Visual Image resolution 16,384 pixels (128 x 128 pixels)
Screen resolution 20,480 pixels (128 x 160 pixels)
Field of view 33 ° x 33 °
Thermal sensitivity 150 mK
Focus system Focus free
Image palettes Grey Scale (white hot), Hot Iron and Rainbow
Hot and cold marker Yes
Display 1.77 in color TFT with 128 x 160 pixels
Operating temperature and humidity 32 °F to 122 °F (0 °C to 50 °C) 10 % to 90 % RH non-condensing at 86 °F (30 °C)
Storage temperature -4 °F to 140 °F (-20 °C to 60 °C) without battery
Operating and storage altitude < 6561 ft (< 2000 m)
Drop proof 4 ft (1.2 m)
Vibration and shock IEC 60068-2-6, 2.5g, 10 to 200 Hz, IEC 60068-2-27, 50g 11ms
Power supply Three (3) 1.5 V AA IEC LR6 alkaline batteries
Battery life 16 hours with display ON (Typical)
Auto power off Selectable modes: OFF, 1 minute, 2 minutes, 5 minutes and 10 minutes
Certifications CE Certification RCM C Certification
Electromagnetic Compatibility EN 61326-1, EN 61326-2 Korea (KCC): Class A Equipment (Industrial Broadcasting Communication Equipment) [1] [1] This product meets requirements for industrial (Class A) electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and is not to be used in homes.
Size (H x W x L) Approx. 7.3 x 2.1 x 4.1 in (185 x 54 x 104 mm)
Weight Approx. 0.66 lb (0.3 kg)



What's Included

  • IRC-110
  • Batteries
  • Wrist strap

Resources

Quick Reference Guide »
Datasheet »
Product Manual »

2 reviews for Amprobe IRC-110 Thermal Camera

  1. Rocky32

    Liking It

    So far so good!!! Received as a gift from supplier!

    ✔ Yes, I recommend this product.

  2. Randall

    Great tool

    I’ve had this tool for a little over a week. I highly recommend it for the price range. It does everything it claims to do. I’ve found failing bearings, clogged radiators, checked a/c blend doors. I’ve even watched the hot water in the sink haha. I do wish the display was a bit larger and the boot up time a little quicker. Also wish the resolution was a bit better. But hands down for the price range I paid I cannot complain about anything honestly. This was purchased mainly for automotive diagnostics. It paid for itself after the second repair in time it saved me alone. Thanks amprobe

    ✔ Yes, I recommend this product.
