Amprobe HD160C IP67 Heavy Duty True-rms Multimeter with Temperature

Amprobe HD160C IP67 Heavy Duty True-rms Multimeter with Temperature

  • Highest voltage capability, measuring to 1500V DC and 1000V AC
  • CAT IV 1000V rated
  • Special sealing for environment and water resistance. IP67 rated
  • Constructed with drop-resistant housing and PCB mounting
  • Measures capacitance, temperature and frequency
  • Superior 10,000 count resolution with bar graph
  • Magne-Grip™ holster, frees both hands for work
  • Includes high voltage test leads with threaded alligator clips
  • Temperature measurement built-in
  • Frequency and capacitance
  • Digi-Glo™ bright backlight
  • Display 4 digit LCD, 9999 counts, with annunciators, menu features and 41 segment bargraph.
  • Polarity indication automatic
  • Input overload indication OL, -OL.
  • Auto power-down



SKU: 2670787 Category:

Product Highlights

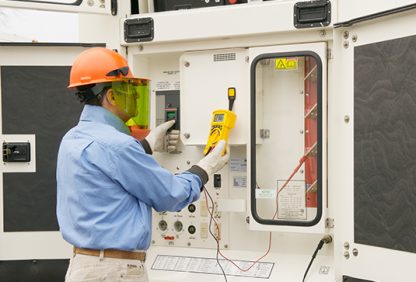

The Amprobe HD160C Heavy Duty Multimeter is designed for professional use in harsh environments. Its made using waterproof construction to prevent dirt, grime and moisture from entering the case and causing inaccurate readings or damaging shorts.

Built with tough, fire-retardant thermoplastic that is resistant to grease and chemical spills and with shock-mounted components that are drop resistant to at least 8 feet, the Amprobe HD160C is unusually rugged and reliable.. It has an extended voltage measurement capability of 1500V DC and 1000V AC, unmatched by any other line of digital multimeters. The extended voltage ranges can withstand transients up to 12 kV, and it also measures temperature.

Specifications

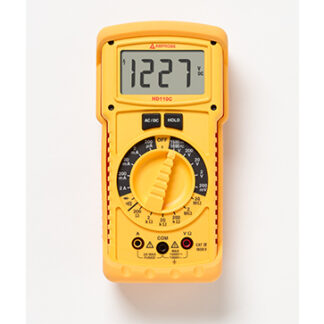

FEATURE HD-110C HD-160C
DC Voltage 200.0 mV, 2.000 V, 20.00 V, 200.0 V, 1500 V 1000.0 mV, 10.000 V, 100.00 V, 1500.0 V
AC Voltage 200.0 mV, 2.000 V, 20.00 V, 200.0 V, 1000 V 1000.0 mV, 10.000 V, 100.00 V, 1000.0 V
Current AC/DC 200.0 µA, 2.000 mA, 20.00 mA, 200.0 mA, 2 A 100.00 µA, 1000.0 µA, 10.000 mA, 100.00 mA, 400.0 mA, 2.000 A
Resistance 200.0 O, 2.000 kO, 20.00 kO, 200.0 kO, 2.000 MO, 20.00 MO 1000.0 O, 10.00 kO, 100.00 kO, 1000.0 kO, 10.000 MO, 40.00 MO
Diode
Continuity
Frequency 100.00 Hz, 1000.0 Hz, 10.000 kHz, 100.00 kHz, 1000.0 kHz, 10.000 M Hz
Capacitance 40.00 nF, 400.0 nF, 4.000 µF, 40.00 µF, 400.0 µF
Temperature -4 °F → 2372 °F (-20 °C → 1300°C)
True-rms
Specifications
DC Volts range: 1000 mV, 10 V, 100 V, 1500 V
DC Volts resolution: 0.1 mV in 1000 mV range
DC Volts accuracy: ±(0.1 % rdg + 5 dgt)
DC Volts input impedance: 10 MO
DC Volts CMRR: >120 dB up to 1500 V dc
DC Volts NMRR: >60 dB at 50 or 60 Hz
DC Volts OL protection: 1500 V dc or 1000 V ac rms
DC Volts transient protection: 12 kV impulse (1.2 µS/50 µS) based on EN 61010-1:2001 impulse requirement for at CAT IV 1000 V/1500V dc product. This product should not be used in installations
AC Volts True-rms range: 1000 mV, 10 V, 100 V, 1000 V
AC Volts True-rms resolution: 0.1 mV in 1000 mV range
AC Volts True-rms accuracy: 1000 mV (45 Hz to 400 Hz) ± (1.2 % rdg + 10 dgt)
AC Volts True-rms accuracy: 10 V, 100 V (45 Hz to 500 Hz) ± (1.2 % rdg + 10 dgt)
AC Volts True-rms accuracy: 10 V, 100 V (500 Hz to 2 kHz) ± (2.0 % rdg + 10 dgt)
AC Volts True-rms accuracy: 1000 V (45 Hz to 1 kHz) ± (2.0 % rdg + 10 dgt)
AC Volts True-rms input impedance: 10 MO
AC Volts True-rms conversion type: True-rms, AC coupled 5 % to 100 % of range
AC Volts True-rms crest factor: = 3
AC Volts True-rms OL protection: 1500 V dc or 1000 V ac rms
Transient protection: 12 kV impulse (1.2 µS/50 µS) based on EN 61010-1:2001 impulse requirement for at CAT IV 1000 V product. This product should not be used in installations where transients exceed 12 kV
DC Current range: 100 µA, 1000 µA, 10mA, 100mA, 400mA, 2A (Auto/Manual ranging)
DC Current resolution: 0.01µA in 100 µA range
DC Current accuracy: 100 µA range ± (0.5% rdg + 10 dgts)
DC Current accuracy: 1000 µA to 400 mA ranges ± (0.5% rdg + 5 dgts)
DC Current accuracy: 2 A range ± (1.5% rdg + 10 dgts)
DC Current input protection: 2 A/1500 V fast blow ceramic fuse 8×65 mm on A input , FP700

For complete specs please download the product datasheet under the “Resources” tab.

Videos

HD-160C Digital Multimeter

For heavy-duty jobs, choose the HD-160C Digital Multimeter.

What’s Included

Description
  • Measures 1500 VDC
  • CAT IV 1000 V
  • IP67 Rated
  • Temperature, Frequency & Capacitance
  • Magne-Grip™ holster with magnetic hanging strap
  • Rugged autoranging meter with true-rms
  • Digi-Glo bright backlight

Included Accessories:   Test leads, batteries(installed), users manual, Magne-Grip™ holder with magnetic hanging strap

Resources

Data Sheet »
Product Manual »

4 reviews for Amprobe HD160C IP67 Heavy Duty True-rms Multimeter with Temperature

  1. solarmatt

    Great Meter!

    I have been using this meter for over a year while working for a company performing solar field commissioning work. It is highly accurate and reliable. It is absolutely essential for me to have a quality instrument that accurately helps me trouble shoot bad circuits and or panels. It has been exposed to heat and cold, dry, dusty conditions and wet muddy conditions and has not failed me yet.

    ✔ Yes, I recommend this product.

  2. Bpearce112

    I recommend this product to everyone

    I would recommend this tool for everyone. I have had for about 6 months and has been extremely reliable. I have multiple dogs and kids and it has hit the floor so many times and has held up with no complications.

    ✔ Yes, I recommend this product.

  3. Buddy5910

    What a great Product with unlimited features

    I have been using Amprobe testers since 1972 starting in the electrical trade as a helper. Now a Master Electrician with my own business, I have used many of the different styles of Multi-Meters, but the only one I have ever purchased is Amprobe. The HD160C-IP67 is a versitile instrument that allows me to carry just one instrument instead of several. Checking out panels, resistance and performing HVAC control wiring and trouble shooting, it is a hard instrument to beat. All of the electricians on my jobs and HVAC technicians all carry the one verstile tester the Amprobe HD160C-IP67!

    ✔ Yes, I recommend this product.

  4. felixi0611

    Great meter

    I have used this meter for a while. It is a work horse that does everything I need and then some. Never had it fail even after I have dropped it off of a bench a few times.

    ✔ Yes, I recommend this product.
