Amprobe AT-4005-A Advanced Wire Tracer

Amprobe AT-4005-A Advanced Wire Tracer

The AT-4000 Wire Tracer Series has been recalled.Learn more
  • Locates and traces energized and de-energized wires in walls, floors, plastic conduit, cable shields and computer cables, without interrupting power
  • Uses one universal transmitter that automatically switches to work with either energized or de-energized systems
  • Comes with a battery booster to strengthen the signal for tracing on de-energized circuits
  • Includes clamp-on attachment that injects the signal when access to bare wires is not available
  • Receiver is not position-sensitive so it doesn’t require rotation for accurate readings
  • Pinpoints shorts, breakers, neutrals, broken wires, and ground lines
  • Does not interfere with sensitive electronic equipment, such as in hospitals and data centers
  • Offers precise sensitivity adjustment
Category:

Description

The most advanced of wire tracers, the Amprobe AT-4005-A wire tracer has all the features of the AT-4004-A plus a battery booster that strengthens the signal for open tracing.

Our best wire tracer, use this electrical wire tracer for finding wires in walls and locating breakers without interrupting power. You can also use it to find energized and de-energized wires, including broken and disconnected wires, and pinpoint shorts and ground faults.

Specifications

FEATURE AT-4001-A AT-4003-A AT-4004-A AT-4005-A
Traces energized wires without power interruption. Locates breakers without power interruption. • • • •
Traces unenergized wires (wire continuity and wire grounded at the end). Pinpoints shorts and ground faults. • • • •
Traces unenergized open wires (broken or disconnected wire). Pinpoints place where wire is broken. • • • •
Supplied with clamp-on attachment to inject signal without making contact with bare wire. – – • •
Supplied with Battery Booster to strengthen signal for open tracing. – – – •
KIT CONTAINS: AT-4001-A AT-4003-A AT-4004-A AT-4005-A
Carrying case Soft SV-1000 Hard CC-AT-4000 Hard CC-AT-4000 Hard CC-AT-4000
Receiver R-4000 • • • •
Transmitter T-4000-A • • • •
110V Pigtail – banana plug cord set C2901 • • • •
Alligator clip – banana plug cord set C2902 • • • •
Grounding test lead 25-ft. MTL-G • • • •
Alligator clip for ground lead VRC-320 • • • •
Clamp-on transmitter accessory A2202 – – • •
Rechargeable battery pack B2024 – – – •
Battery pack recharger B2025 – – – •
Users manual • • • •
Specifications
Transmitter operating voltage: 9-300V AC/DC
Operating frequency: 32.786kHz
Receiver short mode range: 20′ in air from the traced wire under test conditions
Receiver open mode range: 12′ in air from the traced wire under test conditions

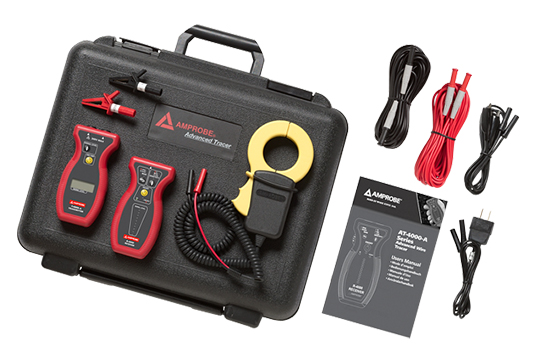

What’s Included

  • R-4000 Receiver
  • T-4000-A Transmitter
  • A2202 Clamp-on transmitter accessory
  • C2901 110 V pigtail banana plug cord set
  • C2902 Alligator clips banana plug cord set
  • MTL-G Grounding test lead 25′ (7.6 m)
  • VRC-320 Alligator clip for ground lead
  • CC-AT-4000 Hard carrying case
  • B2024 Rechargeable battery pack
  • B2025 Battery pack recharger
  • Batteries

Resources

Datasheet »
Product Manual »
