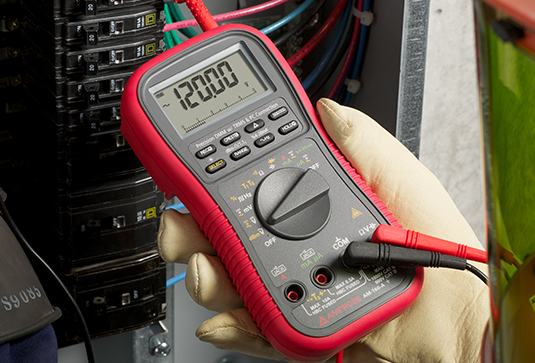

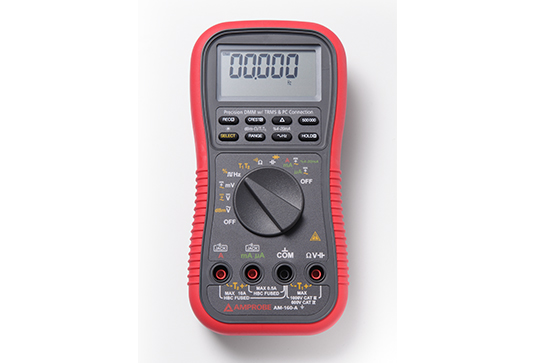

Amprobe AM-160-A TRMS Precision Multimeter with Temperature
- True-rms
- Precision accuracy to 0.02%
- Measurements: voltage up to 1000 V AC/DC, resistance, AC/DC current, frequency, capacitance, duty cycle
- Dual temperature
- Optical isolated PC interface capability
- Crest (peak hold), max, man max-min recording
- Auto and manual ranging
- Intelligent auto power off
- Data hold
- Relative zero mode
- Audible and visual warning against improper plug-in
- DC loop current 4-20 mA
- dBm reading with 20 selectable impedance values
- Backlight display
- Large, easy to read large LCD display
- High speed analog bar graph
- Diode test
- 4-20 mA DC loop current
- Audible continuity
Specifications
AC Voltage |
500.00 mV , 5.0000 V, 50.000 V, 500.00 V, 1000.0 V |
+/- (0.08 % rdg + 60 LSD)
@ 45 Hz → 300 Hz |
DC Voltage |
500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V |
+/- (0.03 % rdg + 2 LSD)
@ 0 V → 50 V |
Resistance |
500.00 O, 5.0000 kO, 50.000 kO, 500.00 kO, 5.0000 MO, 50.000 MO |
+/- (0.10 % rdg + 6 LSD) |
AC/DC Current |
500.00 µA , 5000.0 µA; 50.000 mA, 500.00 mA; 5.0000 A, 10.000 A |
+/- (1.0 % rdg + 40 LSD)
@ 50 Hz / 60 Hz |
Frequency |
5.0000 Hz → 200.000 kHz |
+/- (0.002 % rdg + 4 LSD) |
Capacitance |
50.00 nF, 500.0 nF, 5.000 µF, 50.00 µF, 500.0 µF, 9999 µF |
+/- (2.0 % rdg + 3 LSD)
@ 50 nF → 50 µF ranges |
Temperature |
– |
Dual thermocouple
-58 °F → 1832 °F
(-50 °C → 1000 °C) |
+/- (0.3% rdg + 2 °F),
+/- (0.3% rdg + 1 °C) |
Duty cycle |
0.1 % → 99.99 % |
– |
+/-(3 LSD / kHz + 3 LSD) |
Specifications |
Display |
4-4/5 digits 50,000 counts. Selectable stable mode 5-4/5 digits 500,000 counts for DC voltage 6 digits 999,999 counts for HZ |
Polarity |
Automatic |
Update rate |
4-4/5 digits fast mode: 5 per second nominal
5-4/5 digits stable mode: 1.25 Per second nominal |
42 Segments bar graph |
60 per second max |
Power supply |
Single alkaline 9 V battery; neda1604a, jis6am6 or Iec6lf22 |
Power consumption |
6 mA typical |
Low battery |
Below approx. 7 V |
Apo consumption |
55 µA typical |

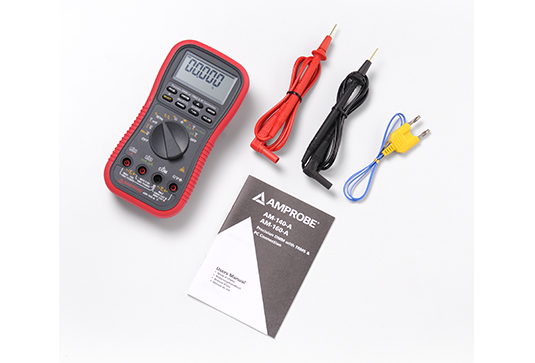

What’s Included
- AM-160-A
- Battery (installed)
- Test leads
- Type-K thermocouple
Brendo –
Excellent tool
I received this as a gift, it’s an excellent tool for use in diagnosing electrical issues
Ben1 –
Good unit.
I have a few meters.
I grab this unit (160) a lot.
Easy to use.
It has held up so far.
🙂
✔ Yes, I recommend this product.
Justin72 –
Over all one of the best.
This is one of the Amprobe products I have used. Over all it is better in comparison than the other brands I have used. It is light weight, and durable. This product is a great product for the value. I currently am recommending this multimeter to others.
✔ Yes, I recommend this product.
Rusty143 –
Great product for field work
As an electrical utility employee we do a lot of field work, due to that we require accuracy and an instrument capable of take a lot of punishement, Amprobe equipment fulfill both requirements with no doubt
✔ Yes, I recommend this product.
Frank –
Great features.
Excellant design and features. I recomend it to every one.
✔ Yes, I recommend this product.
minustide –
Fast Power Quality Investigaing
Excellent accuracy for quick power quality investigations-.02% Hertz and a 500 AC mV range along with True RMS in a convenient hand held VOM makes work easier.
✔ Yes, I recommend this product.
