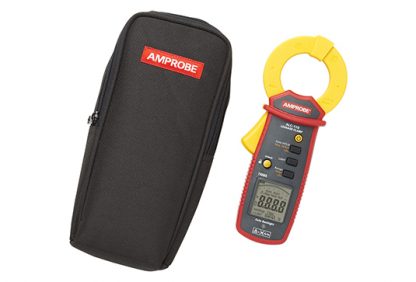

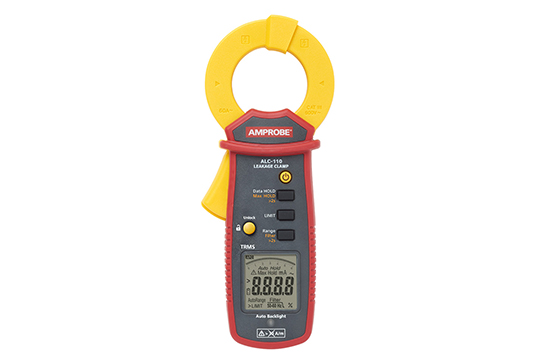

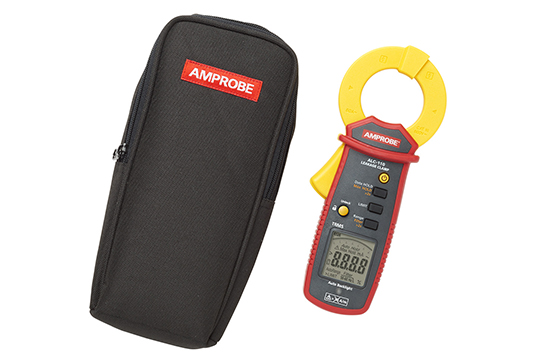

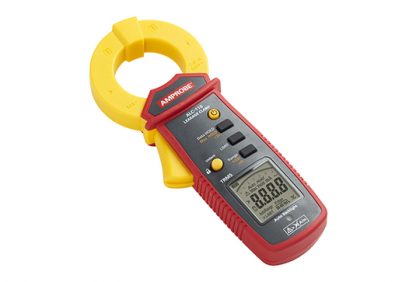

Amprobe ALC-110 Leakage Current Clamp

Measure:
- - Earth and differential leakage currents
  - Leakage currents through the earth (PE) conductor
  - Appliance current consumption without interruptions to the circuit

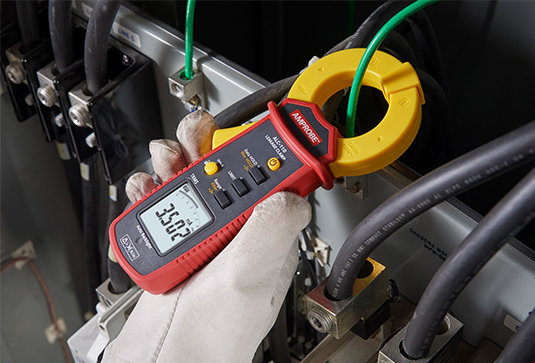

Trace the source of earth leakage currents
Identify intermittent GFCI trips without switching equipment off
Check a system for an electrical break of insulation where current is flowing to the ground
For use where industrial leakage current testing is required

SKU: 4930876 Category: Multi-Featured Clamp Meters

Description

Prevent unplanned downtime by detecting leakage currents with the ALC-110 Leakage Current Clamp. Rated CAT III 600 V to ensure electrical safety, the ALC-110 is designed to resist external magnetic fields for highly accurate readings. Features TRMS, a mechanical jaw lock, max readings and hold functions, highest resolution of 0.001 mA (measure up to 60 A), broad frequency range (15 Hz to 1 kHz), selectable filters (low pass, appliance, no filter), selectable limits (0.25 mA, 0.5 mA, 3.5 mA, 10 mA, 12 mA) and a battery-saving design.

Specifications

Features
Low frequency magnetic fields	≤ 30 A/m, operating class 2 @ IN : 3.500 mA to 600.0 mA / 40 Hz to 1 kHz
Measurement category	CAT III 600 V
True-rms	Yes
AC frequency	15 Hz to 1 kHz
Low pass filter	50 – 60 Hz, for appliance measuring acc. EN61557-16 amendment A, no filter
Limit judgement	0.25 mA, 0.5 mA, 3.5 mA, 10 mA, 12 mA

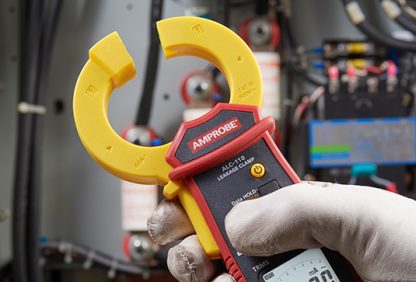

Jaw opening	1.2 in (30 mm) max.
Jaw locking	Yes
Backlight function	Yes
Overload protection	60 A
Auto power off	Idle 20 minutes
Auto ranging	Yes
Max hold	Yes
Data hold	Yes
Complies with IEC/EN 61557-13	Yes
Built according IEC/EN 61010-2-032	Yes

General Specifications
Display	Digital: 6000 counts, updates 5/sec
Range	Auto ranging
Over range indication	OL or -OL
Operating temperature	32 °F to 86 °F (0 °C to 30 °C), ≤ 80% RH 86 °F to 104 °F (30 °C to 40 °C), ≤ 75% RH 104 °F to 122 °F (40 °C to 50 °C), ≤ 45% RH
Operating altitude	≤ 2000 m
Storage temperature	-4 °F to 140 °F (-20 °C to 60 °C)
Pollution degree	2
Temperature coefficient	0.1 x (specified accuracy) / °C (<21 °C, <25 °C)
Vibration requirement	acc. IEC 61557-1 clause 4.10
Drop proof	4 ft (1.2 m)
Battery	2 x batteries 1.5 V IEC LR03 AAA
Battery life	60 hours typical
Safety compliance	IEC/EN 61010-1, IEC/EN 61010-2-030, IEC/EN 61010-2-032, IEC/EN 61557-13
EMC compliance	IEC/EN 61326-1, IEC/EN 61326-2-2
Dimensions (H x W x L)	8.7 x 3.5 x 1.8 in (221 x 89 x 48 mm)
Weight	0.9 lb (410 g) with batteries installed
