Amprobe ULD-420 Ultrasonic Leak Detector

  • Transmitter generates an ultrasonic signal when working in unpressurized systems
  • Three Receiver filters to remove main noise frequencies in noisy environments
  • Adjustable Receiver sensitivity for accurate leak pinpointing
  • 20 kHz to 90 kHz frequency range: optimal range for detecting a variety of leakage events
  • 2.5” LCD display with bargraph
  • Quality headphones to help identify the source of the leak
  • Parabola accessory directs the ultrasound towards the sensor
  • Detachable Tubular Extension provides additional reach in hard to reach areas

SKU: 5117474 Category:

Product Highlights

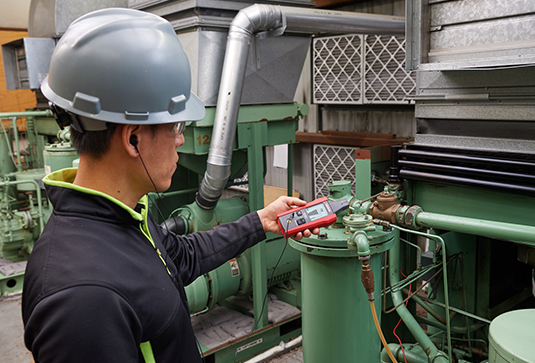

When equipment begins to fail due to an air or gas leak or vibration, or electrical discharge, the leakage point emits an ultrasonic sound wave that is above the natural range of human hearing. The ULD-420 Ultrasonic Leak Detector converts this ultrasonic sound into a signal that can be used to pinpoint the exact location of the equipment failure. When working in unpressurized systems or the pressure is not sufficient enough to detect or verify a leak with the Receiver alone use the Transmitter.

Specifications

ULD-400-R ReceiverULD-400-T Transmitter
Sensitivity AdjustmentYesN/A
Volume AdjustmentYesN/A
Signal Level AdjustmentN/AYes
Earphone Jack (3.5 mm)YesN/A
Display SizeLCD 2.5 in (6.35 cm)N/A
Display Dimensions1.45 x 1.93 in (36.72 x 48.96 mm)N/A
Display Resolution240(RGB) x 320 pixelsN/A
Display TypeTFT-LCD (262 K)N/A
Display ColorTrue, 16bit/colorN/A
Frequency Range20 kHz to 90 kHzTypical 40 kHz squarewave
Filter±5 KHz of main noise frequency, up to three filtersN/A
Power Supply4 x 1.5 V AA (LR6) alkaline batteries2 x 1.5 V AAA (LR03) alkaline batteries
Power Consumption (typical)75 mA33 mA
Battery Life (typical)105 hours (Alkaline)60 hours (Alkaline)
Low battery indicationYes (Red LED)
WeightApprox. 0.518 lb (0.235 kg)Approx. 0.335 lb (0.152 kg)
Dimensions7.547 x 2.984 x 1.791 in
(183 x 75 x 43 mm)
5.295 x 2.559 x 1.326 in
(137 x 65 x 33 mm)
APO function60 minutes when in idle
Operating Temperature-4 °F to 122 °F (-20 °C to 50 °C)
Storage Temperature-4 °F to 158 °F (-20 °C to 70 °C)
Operating Humidity<80% RH
Pollution Degree2
ProtectionIP40
Certifications
Electromagnetic Compatibility (EMC)EN 61326-1
Korea (KCC): Class A Equipment (Industrial Broadcasting & Communication Equipment) [1]
[1] This product meets requirements for industrial (Class A) electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and is not to be used in homes.

Videos

ULD-400 Series Overview

Find ultrasonic leaks easily with the ULD-400 Series Ultrasonic Leak Detectors.



ULD-400 Series Adjusting Signal Strength

Learn how to pinpoint leaks by adjusting Receiver sensitivity.



ULD-400 Series Noise Filter

The Receiver will automatically detect and and filter out up to three main noise frequencies.



ULD-400 Series De-pressurized Systems

Use the Transmitter to emit an ultrasonic sound readable by the Receiver in systems without significant pressure.

What's Included

  • Receiver
  • Transmitter
  • Headphones
  • Earbuds (for use with hard hat)
  • PB-1 Power Parabola
  • TEA-1 Flexible Tubing Adapter
  • TE-1 Tubular Extension
  • Hard Carrying Case
  • 4 x AA Batteries
  • 2 x AAA Batteries

Resources

Datasheet »
Datasheet – Spanish »
User Manual »
