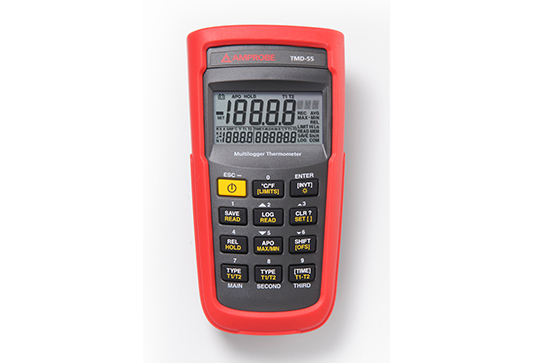

Amprobe TMD-55 Digital Thermometer

  • Backlit triple-display
  • Built in memory: 16 sets, Maximum 1024 data points
  • Data-logging: 128 samples with real-time data per channel
  • Easy Data Recall with up and down key: T1, T2, T1-T2, Time and Memory Location
  • Thermocouple Offset Adjustment
  • REC, MAX, MIN, MAX-MIN, Average, Relative Zero and HOLD functions
  • Resolution 0.1°C/1°C, 0.1°F/1°F
  • Warning beeper with Hi/Lo setting
  • User selectable recording interval
  • Real time clock with calendar

SKU: 3730114 Category:

Product Highlights

The Amprobe TMD-55 Thermometer is a perfect choice for HVAC/R technicians and electricians, as well as research, industrial process, and quality control applications. The dual inputs allow easy super-heat and subcool temperature measurement as well as cut-out and in temperature measurements.

Specifications

FEATURE TMD-50 TMD-51 TMD-52 TMD-53 TMD-53W TMD-55 TMD-56 TMD-55W
Thermocouple type K K, J K, J, T, E K, J K, J K, J, T, E, R, S, N
Basic accuracy 0.1 % 0.1 % 0.05 % 0.05 % 0.05 % 0.05 % 0.05 % 0.05 %
Number of parameters on the display 1 1 3 3 3 3 3 3
Real time clock – wireless beeper with setting
Wireless transmission
Data capture 125 Samples 128 Samples 256 Samples 128 Samples
Data logger 1024 Points 16000 Points 1024 Points
PC interface Wireless USB Wireless
Thermocouple Type Temperature Range
K-TYPE -328 °F → 2501 °F (-200 °C → 1372 °C)
J-TYPE -346 °F → 2192 °F (-210 °C → 1200 °C)
T-TYPE -328 °F → 752 °F (-200 °C → 400 °C)
E-TYPE -346 °F → 1832 °F (-210 °C → 1000 °C)
R-TYPE 32 °F → 3212 °F (0 °C → 1767 °C)
S-TYPE 32 °F → 3212 °F (0 °C → 1767 °C)
N-TYPE -58 °F → 2372 °F (-50 °C → 1300 °C)

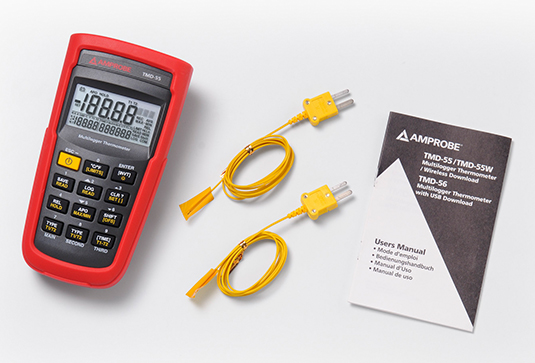

What’s Included

  • TMD-55
  • USB wireless module
  • 2-k type thermocouple
  • Batteries (installed)

Resources

Datasheet »
Product Manual »

1 review for Amprobe TMD-55 Digital Thermometer

  1. bill3215

    The features this has are just what I need

    Using this to check temperatures on a/c units is easy, accurate and simple to use. I like to use the multiple inputs to check hot gas, and suction temps, as well as supply and return temps. I also like being able to use universal type K thermocouples.

    ✔ Yes, I recommend this product.
