Amprobe LAN-1 LAN Cable Tester

Amprobe LAN-1 LAN Cable Tester

  • Test pin configuration for:
  • 10/100 base -T cable
  • 10 base-2 cable
  • RJ45 modular cables
  • AT T 258A cable
  • EIA/TIA 568A/568B cables
  • Token ring cable
  • Verify the cable wiring for continuity, opens, shorts or incorrect wiring
  • Test installed cable on wall plate or the patch panels by using the remote termination module
  • Perform loopback test or remote test
  • Buzzer sound warning for error condition in cable
  • Two sets of LED lights for source and test indication
  • Maximum line length: > 300 meters
  • Connector types: RJ45, BNC



SKU: 3052401 Category:

Product Highlights

The Amprobe LAN-1 Cable Tester is designed for testing opens, shorts and miswired cable installations. It is designed to work with various data cables and connectors. This cable tester provides a quick go/no-go LED display of the wiring and connection of item under test. You can either step through the test cable wiring one at a time or have the unit automatically pulse through the pin-outs and display the results.

Specifications

FEATURE LAN-1
Cable types tested 10/100 base-T; 10 base-2; RJ45; AT T 258A; EIA / TIA 568A/568B; Token Ring
Continuity maximum length > 300 meters
Connector types RJ45, BNC
Specifications
Display: 18 LEDs: 9 red and 9 green, 9 LEDs on remote module
Battery: Standard 9-volt battery, NEDA 1604A, JIS 006P, IEC 6F22
Low battery indicator: The LED indicator will not turn on when BATT button is pushed
Operating environment: 0 to 40°C (32 to 104°F), 10 to 70% RH

For complete specs please download the product datasheet under the “Resources” tab.

What’s Included

Description
  • Verify the cable wiring for continuity, opens, shorts or incorrect wiring
  • Test installed cable on wall plate or the patch panels by using the Remote Termination module
  • Many Test pin configurations

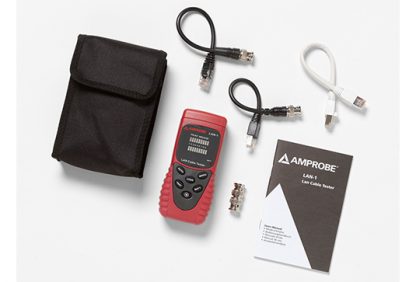

Included Accessories:   Users manual, batteries(installed), remote terminator, RJ45 to female BNC cable, RJ45 to male BNC cable,RJ45 to RJ45 cable, Female BNC to Female BNC cable

Resources

Data Sheet »
Product Manual »
