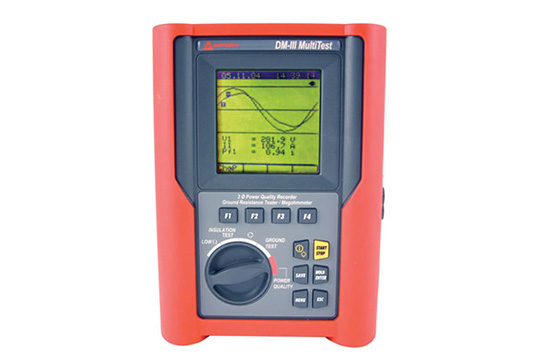

Amprobe DM-III Multitest 1000A Power Quality Recorder

(4 customer reviews)

  • True-rms
  • Measures and records broad spectrum of power quality parameters: AC current, AC voltage to 600V including sags and surges, harmonics (THD and individual up to 49th), active, reactive and apparent power energy, peak demand, power factor, frequency measure
  • Compatible with wide range of current transducers
  • Comes as a complete kit: current transducers, voltage leads, ground probes leads, PC software and download cable are included with this product.
  • Works with single and three phase systems (Y and Delta)
  • Detects and records voltage anomalies, sags and surges
  • Built in scope displays waveforms
  • Phase sequence indication
  • Records up to 64 parameters (single or three phase) simultaneously
  • Manual and programmable recording start
  • Password protection
  • Selectable fundamental frequency of 50 or 60 Hz
  • Special data compression system and user selectable rates allow recording from several hours to several years
  • Download capabilities, Windows compatible PC software
  • Displacement power factor for power factor correction determination
  • Line or battery powered
  • Megohmmeter functions: Tests insulation of wires, cables, transformers and electrical motors
  • Selectable test voltages up to 1000V
  • Programmable timer to perform the dielectric absorption ratio test
  • Sensitive Ohmmeter for checking resistance of motor windings
  • Selectable polarization of ohmmeter for checking grounding continuity
  • Automatic voltmeter protects against misuse on hazardous energized systems
Category:

Description

Amprobe’s full-featured Three-Phase Power Quality Recorders provide the essential functions and capabilities required to operate accurately and effectively in today’s demanding electrical environments.

Specifications

FEATURE DM-III MULTITEST DM-III MULTITEST F
AC Voltage 600 V
AC Currrent 1000 A 3000 A
Optional CT’s 1000 A, 3000 A 100 A
Harmonics THD, DC to 49th
Power W, VAR, VA
Energy Wh, WARh, VAh
Voltage anomalies Sag/surge
Power factor 0.00 +/- 1.00
Frequency 50 / 60 Hz
Phase sequence 1-2-3
Insulation tester 50 V, 100 V, 250 V, 500 V, 1000 V
Ground resistance Reisitance resistivity
Specifications
Supplied current transducer: DM-CT-HTA 1000A standard CT 2 internal diameter CT +/-(0.5% Rdg + 2 LSD
AC Current: DM-CT-100:0.5A to 100A / DM-CT-HTA:5 – 1000A /AM-FLEX33: selectable: 5 – 1000A or 15 – 3000A +/-(0.5% Rdg + 2 LSD)
AC Voltage including sags and surges: 0 – 600V +/-(0.5% Rdg + 2 LSD
Harmonics: THD, DC and individual up to 49th +/-(0.5% Rdg + 2 LSD)
Power: Working (W), reactive (VAR) and apparent (VA) +/-(1.0% Rdg + 2 LSD
Energy: Working (kWh), reactive (VARh) and apparent (VAh) +/-(1.0% Rdg + 2 LSD)
Peak demand: KW +/-(1.0% Rdg + 2 LSD)
Power factor: 0.00 – 1.00
Frequency measurement: 57 to 63.6 Hz at 60Hz fundamental 47 to 53 Hz at 50Hz fundamental +/-(1.0% Rdg + 2 LSD)
Phase sequence: 1 – 2 – 3
Co-generation: Computes incoming and outgoing energy
Selectable fundamental frequencies: 50/60 Hz
Available recording time: Several hours to several years depending on setup
Insulation resistance with 50V DC test voltage: 0.01-19.99, 49.9 +/- (2% reading + 2 digits) 49.9 – 99.9MO +/- (5% reading + 2 digits)
Insulation resistance with 100V DC test voltage: 0.01-19.99, 99.9 +/- (2% reading + 2 digits) 99.9 – 199.9MO +/- (5% reading + 2 digits)
Insulation resistance with 250V DC test voltage: 0.01-19.99, 199.9, 249 +/- (2% reading + 2 digits) 249 – 499MO +/- (5% reading + 2 digits)
Insulation resistance with 500V DC test voltage: 0.01-19.99, 199.9, 499 +/- (2% reading + 2 digits) 499 – 999 MO +/- (5% reading + 2 digits)
Insulation resistance with 1000V DC test voltage: 0.01-19.99, 199.9, 999 +/- (2% reading + 2 digits) 999 – 1999 MO +/- (5% reading + 2 digits)
Low resistance (without timer): 0.01-19.99, 99.9O+/- (2% reading + 2 digits)
Low resistance (with timer): 0.01-9.9O+/- (2% reading + 2 digits)
Ground resistance: 0-19.99, 199.9, 1999 O +/- (5% reading + 3 digits)
Ground resistivity: 0.6- 125.6 Om 0.125-1.256, 19.99, 199.9 kOm +/- (5% reading + 3 digits)



Videos

What’s Included

  • DM-III
  • External power supply
  • Test leads
  • Ground resistance test leads with 4 ground stakes
  • Carrying case
  • PC software and USB cable
  • 3 current transducers (1000 amps)

Resources

Datasheet »
Product Manual »
