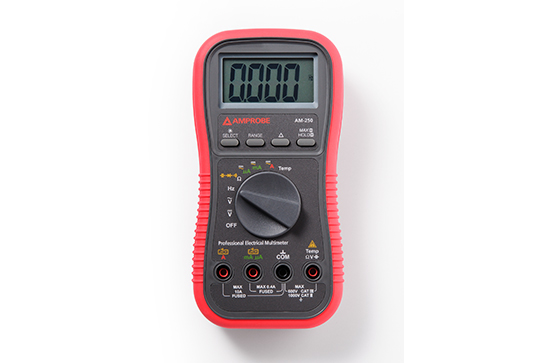

Amprobe AM-250 Industrial True-rms Digital Multimeter

  • 13 Features
  • Measures AC/DC voltage up to 1000 V, current, resistance, frequency, capacitance and temperature
  • Audible continuity
  • Diode test
  • Auto and manual ranging
  • Relative zero mode
  • Data hold
  • Peak hold (30ms response time)
  • Backlight display
  • Large, easy to read LCD display
  • Beep-jack audible warning against improper connection
  • Auto power off

SKU: 3524986 Category:

Product Highlights

The Amprobe AM-250 is a professional multimeter for Electrical and HVAC applications that is safety rated to CAT III 600 V and CAT II 1000 V for indoor applications requiring direct connection to main panel of the building. It measures a complete range of electrical parameters including voltage, current, resistance and frequency. It also covers HVAC applications with temperature, capacitance and micro amps functions.

Specifications

FEATURE AM-250 AM-270
AC Voltage 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 1000 V 50.00 mV, 500.0 mV, 5.000 V, 50.00 V, 500.0 V, 1000 V
DC Voltage 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 1000 V 50.00 mV, 500.0 mV 5.000 V, 50.00 V, 500.0 V, 1000V
Resistance 400.0 O, 4.000 kO, 40.00 kO, 400.0 kO 4.000 MO, 40.00 MO 50.00 O, 500.0 O, 5.000 kO, 50.00 kO, 500.0 kO, 5.000 MO, 50.00 MO
AC/DC Current 40.00 µA, 400.0 µA, 400.0 mA, 4000 mA, 4.000 A, 10.00 A 50.00 µA, 500.0 µA, 500.0 mA, 5000 mA, 5.000 A, 10.00 A
Frequency 5.000 Hz, 50.00 Hz, 500.0 Hz, 5.000 kHz, 50.00 kHz, 500.0 kHz, 1.000 MHz 5Hz → 125 kHz for all setups except: 5Hz → 1kHz for 500V and 1000V ranges 5 Hz → 20 kHz for 50 V range
Capacitance 500.0 nF, 5.000 µF, 50.00 µF, 500.0 µF , 3000 µF 50.00 nF, 500.0 nF 5.000 µF, 50.00 µF, 500.0 µF, 9999 µF
Temperature -4 °F → 572 °F (-20 °C → 300 °C) -58 °F → 1832 °F (-50 °C → 1000 °C)
Data recording Records peak, max, min, max-min
Relative zero mode
Specifications
General specifications 3-3/4 digits 4000 counts LCD display
Polarity Automatic
Update rate 3 per second nominal
Operating temperature 32 °F to 104 °F (0 °C to 40 °C)
Power supply 1.5 V AAA Size (NEDA 24A or IEC LR03) battery X 2
Power consumption 3.2 mA
Special features 25 ms Max Hold; Data Hold; Relative zero mode; Beep-jack™ input warning; Back-lighted display



What’s Included

  • AM-250
  • Test leads (pair)
  • Banana plug K-type thermocouple
  • Batteries (installed)

Resources

Datasheet »
Product Manual »

4 reviews for Amprobe AM-250 Industrial True-rms Digital Multimeter

  1. PODS

    AM 250

    Orinally comming from the automotive industry where I spent the majority of my adult life, I have used many diagnostic instruments inorder to complete the tasks at hand. As an automotive electrician, the AM 250 was and still is a life saver. It comes with a vast amount of connecting cables that can gap the spread from one industry to another. This is a quality made professional product that can take the pain out of making the right diagnosis from the get go, and can be used for electrical diagnosis on a 2000 AMP electrical service panel within my shop a few minutes later. This was not my first AMP Probe product and surely not my last..

    ✔ Yes, I recommend this product.

  2. Dyabs

    Easy to use

    It is easy to use and actual readings are accurate,

    ✔ Yes, I recommend this product.

  3. fin47

    Easy to read and use

    Awesome meter. Does all the things you need it to do. Many attachments and easy to store your leads when you are done using it.

    ✔ Yes, I recommend this product.

  4. Dave12

    Excellent Product

    Our techs use this meter in many different invironments and conditions and they always work accurately and safely. I highly recommend this product and all Amprobe products.

    ✔ Yes, I recommend this product.
