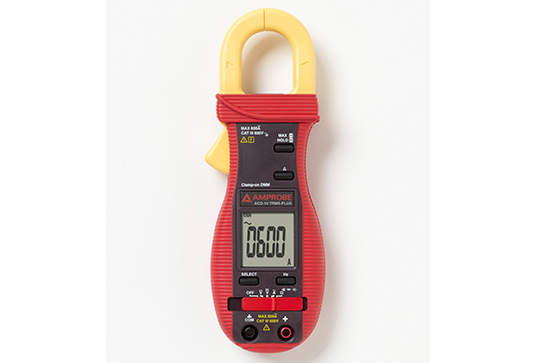

Amprobe ACD-10 TRMS-PLUS 600A Clamp Multimeter

Amprobe ACD-10 TRMS-PLUS 600A Clamp Multimeter

  • AC DC Voltage to 600V
  • AC Current to 600A
  • Thin jaws, only 10mm (0.4) thick
  • Resistance to 40MΩ
  • Continuity buzzer
  • Capacitance to 3000 uF
  • Frequency measurement
  • In rush current
  • Hold maximum reading functions
  • Accommodates conductors up to 26mm (1.02) in diameter
  • Auto ranging
  • Auto power off
  • Rubber over-molded case
  • Overload protected
  • True-rms measurement
  • Included accessories: test leads, battery installed, soft carrying pouch, and users manual



SKU: 3037813 Category:

Product Highlights

Amprobe ACD-10 TRMS-PLUS clamp meter takes AC/DC measurement with true-rms accuracy and offers capacitance and frequency.  It also offers thinner jaws over standard clamp meters allowing access to tight areas and still accommodates conductors up to 25 mm.

Specifications

FEATURE ACD-10 PLUS ACD-10 TRMS-PLUS
True-rms
AC Voltage 4.000 V, 40.00 V, 400.0 V, 600 V
DC Voltage 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 600 V
AC Current 40.00 A, 400.0 A, 600 A
Resistance 400.0 µΩ, 4.000 Ω, 40.00 Ω, 400.0 Ω, 4.000 MΩ, 40.00 MΩ
Capacitance 500.0 nF, 5.000 F, 50.00 CF, 500.0 µF, 3000 µF
Frequency 40 Hz → 400 Hz with Jaw, 10 Hz → 100 kHz with test leads
Temperature
Dual displays
Micro Amps
Accommodates conductors up to 1.0″ (25 mm) in diameter
Specifications
Display: 3-3/4 digits 4000 counts LCD display
Update rate: 3 per second nominal
Polarity: Automatic
Operating temperature: °C to 40 °C; < 80% RH for temperature up to 31 °C decreasing linearly to 50% RH at 40 °C
Altitude: Operating below 2000m; Indoor use
Storage temperature: -20 °C to 60 °C, < 80% RH (with battery removed)
Temperature coefficient: nominal 0.15 x (specified accuracy)/°C @(0 °C ~ 18 °C or 28 °C ~ 40 °C)
Low battery: Below approx. 2.4V
Power supply: 3V coin battery IEC-CR2032
Power consumption: 2.8 mA typical except that 3.3 mA typical for ACA function
APO timing: Idle for 30 minutes
APO consumption: 5 µA typical
Jaw opening conductor diameter: max 26 mm
Special features: 30ms Max Hold; Data Hold; Relative Zero mode

For complete specs please download the product datasheet under the “Resources” tab.

What’s Included

Description
  • TRMS Measurement
  • AC & DC Voltage to 600V
  • AC Current to 600A
  • Thin Jaws, only 10mm (0.4”) thick
  • Resistance to 40MΩ

Included Accessories:   Test leads, battery (installed), soft carrying pouch, users manual

Resources

Data Sheet »
Product Manual »

16 reviews for Amprobe ACD-10 TRMS-PLUS 600A Clamp Multimeter

  1. wicker803

    A Brand you can trust you life on.

    This is an all around great Meter. Amprobe always sells quality equipment. Test Equipment I can trust my life with.

    ✔ Yes, I recommend this product.

  2. Goddog99

    Great product

    Has worked great and acurate to all readingsvery durable too better thanall others ive ever used

  3. Jboyack18

    Great meter.

    Meter is slim and subcompact. Holds up well from the abuse I put it through. 5 stars for sure.

    ✔ Yes, I recommend this product.

  4. ElectricMan

    Great customer service on a great tool.

    When this unit arrived, it was not in working order. I contacted Amprobe and returned for warranty replacement via a prepaid shipping label sent by them. The replacement tester arrived in about 2 weeks with no questions asked and it works great. The new unit that they sent was a complete tester with leads, case, etc. So we ended up with spare leads, case, battery, etc. Overall, except for the delay in getting a working tool, we are very happy and Amprobe Customer Service is the best. I own many Amprobe products and will purchase others in the future.

    ✔ Yes, I recommend this product.

  5. Smiley

    Cost effective to own one for every truck.

    Durable, dependable easy to use. For many years we have bought this same meter so everyone has the same meter in every truck. It’s easy to use, there are no complaints from the guys. Along with the basics it includes TRMS and DCV.

    ✔ Yes, I recommend this product.

  6. Robertarby

    This product has thin jaws that you need.

    I just got this meter and I love it. I am an appliance repairman, these new refrigerators don’t give you any room at the compressor to check the amperage load, all other clamp meters have jaws that are way to thick. with them I have to split the wire shroud at the compressor to get enough room to take a reading, with the acd-10 trms-plus you don’t have to. plus you need TRMS to get an accurate reading. just a half an amp difference can mean a good or bad compressor in these new style compressors.

    ✔ Yes, I recommend this product.

  7. electrician1957

    this product is compact and has it all

    this product is just a great all around meter! that is easy to carry when working in the field

    ✔ Yes, I recommend this product.

  8. samsam

    solid meter

    We use this meter in an HVAC program. It is easy to use, reliable and tough.

    ✔ Yes, I recommend this product.

  9. FD213

    Very easy to use, a lot of options.

    I have used this in an industrial setting for a while and have always had accurate results.

    ✔ Yes, I recommend this product.

  10. Todd71

    great tool

    I have had many multimeters and this is by far the best. Its features are easy to use and it doesn’t have a lot of unneeded optins for my application. I was the first in our shop to purchase an amprobe brand meter and now evrybody in the shop has one.

    ✔ Yes, I recommend this product.

  11. Pete

    Easy to use

    I am a facility manager and I use this amprobe meter quite often. It is very easy to use. Comes in handy when checking and troubleshooting motors and pumps. I would not exchange this tool for anything else.

    ✔ Yes, I recommend this product.

  12. smolaman

    Excellent tool!!!

    Tool overall is easy to read,use and utilize especially in tough working conditions. It provides a good grip feel in your hands, and a sense of trust in this quality equipment when safety is most important.TRMS is an excellent, high quality feature

    ✔ Yes, I recommend this product.

  13. DoctorCool

    one tool many uses

    I have enjoyed using the acd10 amp/multi meter because it reduces the amount of meters to carry when trouble shooting an air conditioning system and have found it to be very useful.

    ✔ Yes, I recommend this product.

  14. McGiver

    Quality tools are the key to success.

    On a one to ten scale I would rate this Multimeter and Amp meter combination to any one in the HVAC/R field of work. It has all the functions needed to troubleshoot an HVAC/R system. Easy to use and is rugged.

    ✔ Yes, I recommend this product.

  15. Telecom23

    Excellent Product

    This Multimeter is perfect for the industry I work in which is Telecom. We use these regularly when installing our power circuits that feed our equipment. The ease of use is second to non and the accuracy is spot on.

    ✔ Yes, I recommend this product.

  16. Craig

    Always works

    Have used only amprobe brand amp probes since the 70’s,never had a problem and only purchased new models when changing to digital and harmonics,with the ability to accessorize and put in a case,they are the best designed probes available.

    ✔ Yes, I recommend this product.
