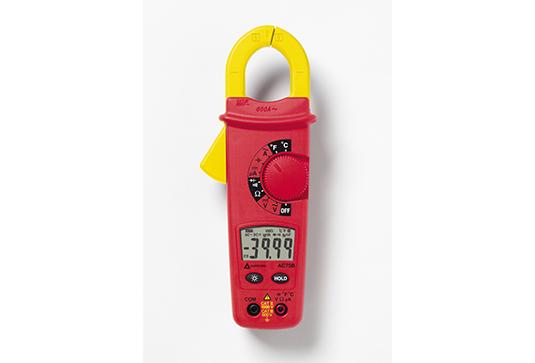

Amprobe AC75B 600A Digital Clamp Meter with Temperature

  • 600 A AC current
  • Digital thermometer to 400 °C (1000 °F), K-type probe included
  • AC/DC Volts 750 V/1000 V
  • Capacitance to 4000 µA for motor run/start capacitor testing
  • 4000-count large digit display
  • Full overload protection
  • Auto power off
  • Low battery indicator
  • Jaw size 1.3″ (35 mm)

Category:

Product Highlights

The Amprobe AC75B Clamp Meter, Multimeter and Thermometer prepares you for almost any challenge in HVAC, electrical or industrial maintenance applications.

Specifications

FEATURE AC75B
True-rms
AC Voltage 4.000 V, 40.00 V, 400.0 V, 750 V
DC Voltage 4.000 V, 40.00 V, 400.0 V, 1000 V
AC Current 400.00 A, 600 A
DC Current
Micro Amps 400.00 µA, 4000 µA
Resistance 400 O, 4 kO, 40 kO, 400 kO, 4 MO, 40 MO
Continuity
Capacitance 4 nF, 40 nF, 400 nF, 4µF, 40µF, 400 µF, 4mF
Frequency
Temperature -40 °F → 1000 °F (-40 °C → 400 °C)
Accommodates conductors up to 1.3 (35 mm) in diameter
Specifications
AC Current (50/60 Hz) 400 A, 600 A , Accuracy: 0 to 60 A ± (1.9 % + 2 A), 60 to 400 A ± (1.9 % + 1 A), 400 to 600 A ± (2.5 % + 7 A)
Resolution 0.1 A
400, 4000 µA , accuracy ±(1.0 %+2 d) -0.6 V to -1000.0 V, Accuracy: ±(1% + 4 dgt)
Resolution 0.1µA
AC Voltage (50 to 500 Hz) 4 V, 40 V, 400 V, 750 V, Accuracy: ±(1.5 %+5 dgts)
Resolution 1 mV
DC Voltage 4 V, 40 V, 400 V, 1000 V, Accuracy: ±(0.9 %+2 dgts)
Resolution 1 mV



What’s Included

  • AC75B
  • Test leads
  • Temperature adapter

Resources

Datasheet »
Product Manual »

10 reviews for Amprobe AC75B 600A Digital Clamp Meter with Temperature

  1. Cal82

    Durable, Go-To

    Just like the title says, this is a very durable clamp meter and my go-to in the field. It has a number of functions and for me, has been super accurate. Clamp is still strong after tons of use and I’m sure it’ll last me for years to come.

    ✔ Yes, I recommend this product.

  2. Builder

    Good meter

    Very simple to use easy to read display I wish my other meters would have stood up like this one.

    ✔ Yes, I recommend this product.

  3. ioseftzemaj

    ES UNO DE LOS MEJORES AMPERIMETROS DEL MUNDO

    TIENE TODO ESTA COMPLETO, PARA UN SERVICE ELECTRICO Y ELECTRONICO YO LO RECOMIENDO Y SIEMPRE ESTÁ DE TU LADO A LA HORA DE TRABAJAR.

    ✔ Yes, I recommend this product.

  4. RonniePeg95

    excellent tool

    very accurate and great tool for the price. highly reccomend. Use it daily without ever a problem.

    ✔ Yes, I recommend this product.

  5. Jsic221925

    HVAC contractor

    Does everything I need it to for servicing HVAC/R equipment and does it well, the only complaint is the response time is slow when checking voltage but most digital meters are like that so I guess it’s normal.

    ✔ Yes, I recommend this product.

  6. jimg

    a must have tool

    As a home inspector and energy auditor I find this meter to be ideal because of it’s temperature function and ease of use. its easy to read and has all the circuit analysis functions I need at a reasonable price.

    ✔ Yes, I recommend this product.

  7. royalty

    perfection

    very accurate, not too bulky to hold in hand, very handy tool.

    ✔ Yes, I recommend this product.

  8. n5ngt

    Is a great meter for the value

    It great to be able to to take amp readings and temperature with the same meter. Often high amp readings are caused by loose connections, which can be found with temperature readings. With this meter you don’t have to carry 2 meters. As a troubleshooter, this is handy. You have enough tools to carry without haveing to lug an extra meter.

    ✔ Yes, I recommend this product.

  9. charger340

    Lots of features,easy to use,very acurate

    This meter provides alot of bang for the buck.This meter is great in a multitude of fields of work.Automotive,residental electrical,commerical electrical,hvac,appliance repairs,this meter covers all my needs and is easy to use and is cery acturate.I highly recommend this meter to anyone I know.

    ✔ Yes, I recommend this product.

  10. Savmad

    Best multimeter I have ever owned

    I do HVAC work for the School System and this meter does everything I want it to an more. The temperature feature is one of my favorites I use it almost daily from checking refrigeration units to class room temperatures. I also use the multimeter just about everyday as well. I have had this meter for about three years and have not had any problems at all.

    ✔ Yes, I recommend this product.
