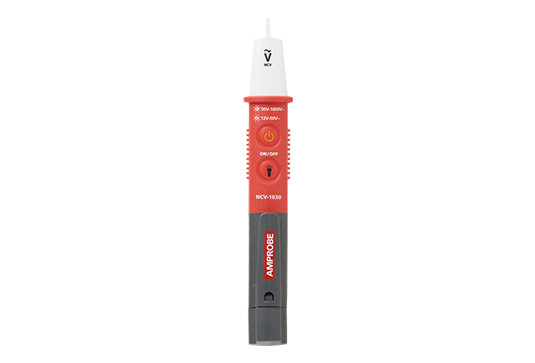

Amprobe NCV-1030 Non-Contact Voltage Probe

  • Detects the presence of AC voltage in cables, circuit breakers, wall sockets, junction boxes, fuses, extension cords and more
  • Tests voltage through wire insulation
  • Identifies cable breaks in wires, cords and lightning systems connected in series
  • Identifies polarity (line vs. neutral) of receptacles and cables
  • Safely tests voltage in non-contact way
  • Safety CAT IV 1000 V rated for wide range of applications
  • IP65 rated (water and dust resistant) for indoor and outdoor use
SKU: 4918051 Category:

Description

The Amprobe NCV-1030 Non-Contact Voltage (NCV) tester provides maximum safety and convenience for detecting AC voltage without interrupting electrical systems. Designed to conveniently fit in your shirt pocket, the NCV-1030 tester performs in indoor and outdoor settings. Safety tested to the highest category measurement, CAT IV 1000 V, as well as IP65 water and dust resistant, the NCV-1030 is fit for the toughest industrial applications.

CE Certification RCM C Certification

Specifications

Specifications
Operating Voltage Range 12-50 V AC, 50-1000 V AC, 50-400 Hz
Voltage Indication Bright red LED and buzzer
Voltage Detection Illuminates at approximately 10 mm (0.39 in) distance from a wire carrying 120 Vac
Temperature Range 32 °F to 104 °F (0 °C to 40 °C), ≤ 80% RH
Storage Conditions 14 °F to 104 °F (-10 °C to 40 °C), ≤ 85% RH
Operating Altitude ≤ 6561 ft (2000 m)
Power Supply 2 1.5 V LR03 AAA batteries
Duty Cycle Continuous
Current Consumption Approximately 80 mA
Dimensions (L x W x H) 156.2 x 23.5 x 27.5 mm (6.14 x 0.92 x 1.08 in)
Weight (with batteries installed) Approx. 60 g (0.13 lb)
Safety Compliance IEC 61010-1 3rd Ed., UL61010-1 2nd Ed. and CAN/CSA-C22.2 No. 61010-1-04 +Update No. 1:2008 to CAT IV 1000 V, Pollution degree 2, IP65
EMC Compliance IEC 61326-1
Certifications CE Certification RCM C Certification
Features NCV-1020 NCV-1030 NCV-1040
Audible buzzer voltage indication
Visual LED voltage indication
CAT IV 1000 V safety rated
IP65 rated water/dust resistant
Voltage detection from 50 to 1000 V AC
NCV sensitive range (12 V to 50 V AC)
Built-in work light
Low battery indication
Auto-off
Magnetic solenoid testing

What’s Included

  • NCV-1030
  • Batteries (installed)

Resources

Datasheet »
Product Manual »
