Amprobe AT-6010 Advanced Wire Tracer Kit

  • Traces wires in walls, ceilings, floors and corners
  • Locates breakers and fuses
  • Pinpoints shorts and opens
  • High resolution 2.5″” TFT LCD black & white display
  • Simple one button Transmitter operation
  • Two Transmitter signal modes
    1. “High Signal” mode for normal circuits
    2. “Loop” mode for closed loop de-energized circuits
  • Two automatically selected frequency modes for reliable tracing on energized and de-energized circuits
  • Comes with custom Amprobe soft carrying case, test leads and accessories
  • Rated CAT III 600 V for work directly on an energized circuit without the need to take equipment offline
  • Compatible with optional Signal Clamp (CT-400) clamp-on attachment

SKU: 5044625 Category:

Product Highlights

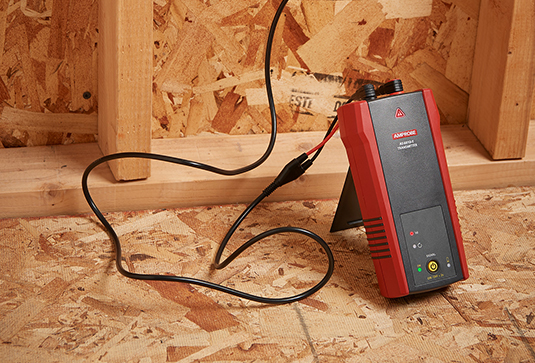

Easily and accurately locate wires, breakers, and fuses with the AT-6010 Advanced Wire Tracer. When the Transmitter is connected to the circuit (Energized or De-energized, up to 600 V AC/DC in Category I through Category III electrical environments), the Receiver easily detects the transmitted signal in the wires or cables behind walls, ceilings and floors. Work safely on energized circuits without the need to take equipment offline. The Transmitter also features high signal mode for general tracing and a loop mode designed specifically for locating shorts, as well as two optimal tracing frequencies that are automatically activated based on the detected voltage. The AT-6010 can be combined with the CT-400 Signal Clamp (optional accessory) for applications where access to circuit contacts is limited or where users are not able to connect the Transmitter to the circuit through test leads.


Winner – Tool Innovation Awards Electrical Specialty


Features AT-6010-R Receiver AT-6010-T Transmitter
Measurement category CAT III 600 V
Operating voltage/current 0 to 600 V
Operating frequency Energized: 6.25 kHz
Hazardous voltage detection N/A > 30 V AC/DC
Signal indications Numeric bar graph display and audible beep LEDs
Response time Tip Sensor (Energized/De-energized): 500 ms
Battery voltage monitoring: 5 sec
Line voltage monitoring: 1 sec
Battery voltage monitoring: 5 sec
Current output of signal (typical) N/A Energized circuit:
HI mode: 60 mA RMS
De-energized circuit:
HI mode: 130 mA RMS
Loop mode: 160 mA RMS
Signal voltage output (nominal) N/A De-energized circuit:
HIGH: 33 V RMS, 140 Vp-p
With CT-400:
Loop model:
31 V RMS, 120 Vp-p
Range detection (open air) Tip Sensor (Energized):
Max distance via air: up to 20 ft (6.1 m)
Pinpointing: approx. 1.97 in (5 cm)
Tip Sensor (De-energized):
Max distance via air: up to 14.7 ft (4.5 m)
Pinpointing: approx. 1.97 in (5 cm)
Display size LCD 2.5 in (6.35 cm) N/A
Display dimensions (W x H) 1.45 x 1.93 in
(36.72 x 48.96 mm)
Display type Segment LCD LEDs
Display color Black and white Operating mode LEDs: red
Battery status LED: red
Booting time < 3 sec < 2 sec
Backlight Yes N/A
Operating temperature -4 °F to 122 °F (-20 °C to 50 °C)
Operating humidity 45%: -4 °F to <50 °F (-20 °C to <10 °C)
95%: 50 °F to <86 °F (10 °C to <30 °C)
75%: 86 °F to <104 °F (30 °C to <40 °C)
45%: 104 °F to 122 °F (40 °C to 50 °C)
Storage temperature and humidity -4 °F to 158 °F (-20 °C to 70 °C), <95% RH
Operating altitude 0 to 6561 ft (2000 m)
Transient protection N/A 6.00 kV (1.2/50μS surge)
Pollution degree 2
IP rating IP 52 IP 40
Drop test 3.28 ft (1 m)
Power supply 4 x AA (alkaline) 8 x AA (alkaline)
Power consumption (typical) 70 mA Hi mode: 70 mA
Loop mode with Clamp: 90 mA
Consumption without signal transmission: 10 mA
Battery life Approx. 25 h Hi mode: approx. 25 h
Loop mode: approx. 18 h
Low battery indication Yes
Fuse N/A 1.6 A, 700 V, fast-acting,
Ø 6x32mm
Dimensions (L x W x H) Approx. 7.2 x 2.95 x 1.69 in
(183 x 75 x 43 mm)
Approx. 7.2 x 3.66 x 1.97 in
(183 x 93 x 50 mm)
Weight Approx. 0.6 lb (0.27 kg) Approx. 1.25 lb (0.57 kg)

Refer to user manual for accessory specifications


AT-6010 Overview

There’s no better wire tracer for residential and light commercial applications.


AT-6010 Unboxing

See everything that’s included with the AT-6010 wire tracing kit.


What's Included

AT-6010-R Receiver
AT-6010-T Transmitter
TL-6000-INTL Test lead and accessory kit*
CC-6010 Soft carrying case
User Manual
Quick Reference Guide
1.5 V AA (IEC LR6) Battery 12

* TL-6000-INTL test lead and accessory kit includes:

  • 2 x 1 m test leads (red, black)
  • 1 x 7 m test lead (green)
  • 2 x Alligator clips (red, black)
  • 2 x Outlet blade adapter (red, black)
  • 2 x Outlet round adapter (red, black)

Optional Accessories:

  • ADPTR-SCT Socket adapter
  • HS-1 Magnetic hanger
  • TL-7000-25M Test lead
  • CT-400 Signal clamp
