Amprobe AM-570 Industrial Multimeter

(24 customer reviews)

  • True-rms technology improves accuracy in electrically noisy environments
  • Measures AC/DC Voltage up to 1000 V, AC/DC current, resistance, frequency, capacitance, temperature, and duty cycle
  • Low Z mode detects stray voltages
  • Low pass filter accurately measures voltage on variable frequency drives
  • Peak hold (crest) captures and holds the peak value of a voltage or current surge
  • Non-contact voltage detection enhances safety
  • Audible continuity quickly identifies shorts and opens
  • Diode test to verify diode polarity
  • Data hold freezes the reading on the display for further analysis
  • MIN/MAX recording records min/max measurements over time to show voltage fluctuations
  • Relative zero mode displays the difference between the actual reading and a stored reference value and may be used with any function or range
  • Warning alerts against improper test leads connection
  • Combines user friendly features such as, auto power-off to conserve battery life, low battery warning, a “third hand” test probe holder, built-in test leads storage, a built-in flashlight, and a Velcro strap to hang the meter
  • Auto and manual-ranging delivers maximum flexibility
  • Dual reading backlit LCD display with analog bar graph makes it easy to view results
  • CAT IV 600 V/CAT III 1000 V safety rated for high voltage environments
SKU: 4210340 Category:


The Amprobe AM-570 autoranging digital multimeter is one of the best digital multimeters in its class. Designed for professional electricians who need to maintain service or troubleshoot advanced electrical systems in the most demanding environments, the AM-570 high voltage multimeter is packed full of professional digital multimeter features. With True-rms accuracy for measuring voltage in noisy environments, dual thermocouples for differential temperature measurements, low impedance mode to detect stray voltage, and a low pass filter to accurately measure the voltage on variable frequency drives, the AM-570 takes care of quick go/no-go checks with a single tool.

AM-500 AM-510 AM-520 AM-530 AM-560 AM-570
Multimeter Type Auto-ranging Com / Res HVAC Electrical Adv. HVAC Industrial
Safety Rating Safety CAT III 600V CAT III 600V CAT III 600V CAT III 600V CAT IV 600V
CAT III 1000
CAT III 1000
Measure voltage in noisy environments True rms
Electrical panels, AC outlets AC Voltage (V) 600 600 600 600 1000 1000
DC systems, auto/marine batteries DC Voltage (V) 600 600 600 600 1000 1000
AC Current – electrical panels, appliances AC Current (A) 10 10 10 10 10 10
DC Current-electronics, DC motors DC Current (A) 10 10 10 10 10 10
Specified resistance and continuity Resistance (MOhms) 20 40 40 40 60 60
Flame sensors Microamps
Diodes in AC to DC converters Diode Test
Fuses, lightbulbs, wire connections Continuity
Household batteries Battery test
Motor startup or run capacitors Capacitance
Frequency verification Frequency
Non-contact voltage test Non-contact voltage
Electrical load-time on vs time off Duty cycle
Temp of air vents, fuses, transformers Temperature inputs 1 1 2 2
Automatically selects measurement range Autoranging
Manually select measurement range Manual ranging
Voltage on variable frequency drives Low pass filter
Detect stray voltages Low Z
Dimly lit areas Built-in flashlight
Meter resolution LCD Counts 2,000 4,000 4,000 4,000 6,000 6,000
Dimly lit areas Backlight
Monitoring fast changing signals Bar graph
Two relative measurements on one screen Dual display
Data memory Data hold
Difference between two measurements Relative reading
Max/min peak measurement Max/min hold
Specialized signal measurements Peak hold (crest)


Additional information

Safety Rating

CAT IV 600 V


AC Voltage (V)

1000 V

DC Voltage (V)

1000 V

AC Current (A)

10 A

DC Current (A)

10 A





Duty Cycle

Relative Zero

Temperature Inputs


Diode Test

Continuity Beeper

Non-Contact Voltage



Bar Graph

Data Hold

Peak Hold (Crest)

Auto Power Off

Work Light (LED)

Low Pass Filter

Low Z


FEATURE AM-570 Best Accuracy
True-rms X
AC Voltage 6.000 V, 60.00 V, 600.0 V, 1000 V +/- (1.0 % rdg + 3 LSD)
@ 45 Hz to 400 Hz, 0 V to 600 V
DC Voltage 600.0 mV, 6.000 V, 60.00 V,
600.0 V, 1000 V
+/- (0.5% rdg + 2 LSD) @ 6 V to 600 V ranges
AC Current 600.0 μA, 6000 μA,
60.00 mA, 500.0 mA,
10.00 A
±(1.2% Rdg + 5 LSD)
@ 600 μA to 6000 μA ranges,
45 Hz to 400 Hz
DC Current 600.0 μA, 6000 μA,
60.00 mA, 500.0 mA,
10.00 A
±(1.0% Rdg + 2 LSD)
@ 600 μA to 6000 μA ranges
Frequency 60.00 Hz, 600.0 Hz,
6.000 kHz, 60.00 kHz, 600.0 kHz,
6.000 MHz, 60.00 MHz
+/- (0.1% rdg + 3 LSD)
Resistance 600.0 Ω,
6.000 kΩ, 60.00 kΩ, 600.0 kΩ
6.000 MΩ 60.00 MΩ
+/- (1.0% rdg + 2 LSD)
@ 6 kΩ to 600 kΩ ranges
Capacitance 60.00 nF, 600.0 nF,
6.000 μF, 60.00 μF, 600.0 μF, 6000 μF,
60.00 mF
+/- (3.0% rdg + 5 LSD)
@ 600 nF to 60 μF ranges
Temperature -40 ⁰F to 1832 ⁰F
-40 ⁰C to 1000 ⁰C
+/- (1.0% rdg + 12) @ >104 ⁰F to 752 ⁰F
+/- (1.0% rdg + 8) @ >40 ⁰C to 400 ⁰C
Number of temperature inputs Dual Thermocouple
Duty cycle 10.00% to 90.00% +/- (1.2% rdg + 30 LSD) @ 5 Hz to 2 kHz



Amprobe AM-500 Series

Learn about the AM-500 Digital Multimeter Series.

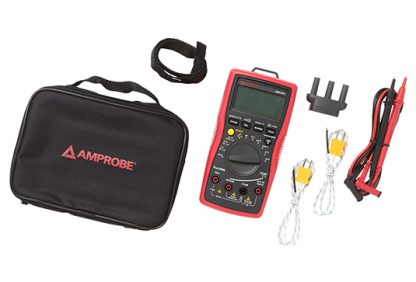

What’s Included

  • AM-570
  • 9V(6F22) x1 battery installed
  • Test leads
  • Type-K probe x 2
  • Temperature adaptor
  • Velcro strap
  • Carrying case


Datasheet »
Product Manual »

24 reviews for Amprobe AM-570 Industrial Multimeter

  1. fr33kachu

    Great meter for a great price!!

    This meters offers more features, is rated for higher voltages, and works better overall than my other name brand meter in the same price range. I have decided all my future meters Will be Amprobe. If you need a meter you can trust, buy this one!!!!

    ✔ Yes, I recommend this product.

  2. rahayes82

    Great handheld!

    This meter is a great asset to any electrician/technician’s tool box inventory. Easy to use, easy to hold, awesome features and price is affordable. It even has a built in flashlight which is a great feature that comes in handy in low light areas. A+ product!

    ✔ Yes, I recommend this product.

  3. bedfordia

    best meter going

    I am an industrial electrician and rough on my tools, The Am-5550 has got to be one of the most rugged meters I have ever owned. It has survived many drops and slams. the controls on the front are very quick and easy to use and the display is very easy to read in dim lighting. I would recommend this meter to anyone in the field.

    ✔ Yes, I recommend this product.

  4. jcarr57

    the amproble has excellent features like large display for easy viewing even is low light, can be dropped or slammed in doors and still dependablej

    I have worked for a company in the maintance deparment for many years and i have used amprobe and have used many other digital meters and i have found that amprobe have stood up through all the toughest jobs and the most reliable of all the meters i have used. the display is very clear and readable even in the lowest light the dial is easy to turn even with gloves on, tough enough to with stand being dropped from a second level (20′) I would be proud to recommend amprobe to anybody looking for a good all around all porpose meter

    ✔ Yes, I recommend this product.

  5. mdcjrd399

    Durable and easy to use

    I wire electrical panels, so the bulk of my use is for checking continuity, but when I have used it for other purposes, it functions quite well, and I especially like the digital display screen. Obviously, in a shop environment, the meter occasionally gets dropped, but it has been extremely durable, absorbing all kinds of bumps and bruises.

    ✔ Yes, I recommend this product.


    Great for medium/heavy duty industrial applications.

    we use this meter solely in all of our trucks. it handles being thrown around in the trucks and dropped from ladders.

    ✔ Yes, I recommend this product.

  7. mrb56

    great product

    this meter has plenty of useful features
    very handy

    ✔ Yes, I recommend this product.

  8. BulletBrian

    Quality Built

    As a generator repairer it it important to get accurate readings. This quality multimeter has all the functions needed to trouble shoot faulty wiring with dead on accuracy.

    ✔ Yes, I recommend this product.

  9. SolderMac

    Mid-level features, Hobbiest price.

    I bought this meter under the impression that it was an industrial meter – and I wasn’t disappointed, much.

    The meter is a sturdy, good looking meter with dual-display in several modes, mainly the AC Voltage and Current modes use it for displaying the frequency of the AC signal.

    The features measure up to a lot of other industrial meters with big, well known names, and yet there is more here than many of them – like dual temperature probes, Non-contact voltage sense, and frequency/duty measurement. And one of the best features is the LCD Backlight – it is very bright and uniform throughout the display, and brighter than sever meters costing 4 to 5 times as much.

    When I checked the True RMS ability of this meter against one or two others I found this one more ‘accurate’. A sine signal of 10Vpk properly measured 7.07Vrms. Several other meters were off by several 100mV.

    The dial turns easily when stood on the bale, and the meter is pretty sturdy standing up. The case also seems to be pretty sturdy, but the unit over all is quite light weight. I wonder if it would withstand a three story fall onto concrete? #I’ve seen other meters tested this way!# Also the pcb and components appear to be decent, but the plugs are split, not machined.

    On the down side the fuses aren’t accessible without removing the entire rear cover, and the screws aren’t machine screws into metal inserts – its just self-tapping into plastic. If you remove the back too frequently #as for calibration?# these could become easily stripped.

    On my wish list for this meter to be AAA+ would be the following:

    A# Use three high intensity LEDs instead of one, add a visual indication of NCV detection such as illuminating the flashlight, LCD backlight, or a red light indicator.

    B# Design the case to use closing covers over the terminals so that the wrong leads can’t be used. #I know this meter has an audible and visual indication for leads in mA terminal when the setting is voltage, but this didn’t work when plugged into the Volt terminal and setting set to uA, mA, or A.#

    C# Allow users to turn the ‘Beep’ on or off. #The beep is constant when turning the dial or pushing buttons.#

    D# Make the battery compartment lid also an access to the fuses so you don’t have to remove the whole back cover #and void a calibration!#

    E) Use machine screws with metal inserts, instead of the self-tapping ones, to secure the back and battery compartment covers.

    F) Add a feature to compare two Voltage, Current, Frequency, or other measurements. This would make better use of the dual display #not that it’s bad as it stands#. I.E. Capture a measurement on the dual-display, then make another on the main display.

    G) See if you can’t increase the counts up to 9999, or go to a 20000 count, High Resolution display.

    Even with a pretty extensive wish list, I think I really like this meter. I am a little disappointed with some of the features #I’d like to be able to go to 0.000nF, not just 00.00nF!# but the feature set and cost keep reminding me that I got all this for such a great price. I’d highly recommend this meter and have been showing it off to co-workers since I got it.

    Now, what other equipment do I need to buy…

    ✔ Yes, I recommend this product.

  10. MikeB

    Great meter for the price.

    I bought this as a backup second multimeter and for the ability to take readings on running VFDs. I thought the temperature measurement would be nice but I found a 3 degree difference in the two temperatures even after swapping probes. Otherwise five star.

    ✔ Yes, I recommend this product.

  11. Castironman

    Good meter

    I like the display, it is organized and easy to read, the rotary selector is firm and having the off position at both corners helps. The LED and the strap makes it very useful when working in those tight dark spots. The continuity test really latches and it is fast.True RMS is a plus.
    If I had the chance to improve on the current design I would suggest this: have the display a little more recessed for protection, if falls it would not scratch it easily: have the fuses more accessible; make the outside rubber cover removable so I can wash it and keep it clean; have the display light on until I press the button again and the part more important to me, is to reduce the shunt resistance on the micro amps selection ( it is too high for some measurements ). Also, Instead of the rotary off I would love to see an on/off button instead.Thank you.

    ✔ Yes, I recommend this product.

  12. Ramos

    Very good

    This meter is easy to use the display is big enough for me to read. Construction material are very acceptable good quality. I like the LED built in light it save me time it is very convenience. Very easy to use.

    ✔ Yes, I recommend this product.

  13. JimH

    Good Meter

    I’m an EE. The AM-570 has everything I wanted. I have over a dozen meters but none had a capacitance checker. This meter has become my favorite. Accurate and very safe. Large backlight display. Rugged case, good probes. Would have liked a Fluke, but didn’t want to spend 4X. Amprobe is good value.

    ✔ Yes, I recommend this product.

  14. Mike27

    Good overall quality

    Very fast continuity reading, very near to a Fluke.
    Non contact voltage did not work every time or need to be very close to cable with electricity.
    The plug for the test leads are to loose. Maybe need to make a improvement with use

    Rest of the functions working as expected.

    ✔ Yes, I recommend this product.

  15. Kaypee

    Does everything I need it to

    I work in the engine room of a tugboat and use this meter almost daily. It does it’s job well.

    ✔ Yes, I recommend this product.

  16. TJ63

    Great features easy to use

    This as with all Fluke products is an excellent tool

    ✔ Yes, I recommend this product.

  17. Dakota

    Great meter!

    I have had this meter for over two years and use it regularly. It has always outperformed any other meter!

    ✔ Yes, I recommend this product.

  18. Timbo

    Excellent product

    Have used other meters and this is best. Easy to use and is reliable.

    ✔ Yes, I recommend this product.

  19. Dudleydog

    Excellent meter..

    Growing up my father has always used Amprobe meters and I have to. This and all my meters have been a great investment.

    ✔ Yes, I recommend this product.

  20. Vette8909

    Excellent Multimeter

    I bought this meter to replace a cheap meter I had bought that had failed on me. This meter has proven to be accurate and reliable.

    ✔ Yes, I recommend this product.

  21. Mseldy

    Mostly quality

    Great display and easy to use, only limitation is the connections to the probe can become bare with a too much use, a bit disappointing but turns out was under warranty. Very nice otherwise

    ✔ Yes, I recommend this product.

  22. Bosa69

    Every day use in fleet work

    Best tool I use to troubleshoot the the fleet I maintain in the waste industry.

    ✔ Yes, I recommend this product.

  23. Donnie

    Great features with this meter

    Great meter for all ur electrical trouble shooting needs

    ✔ Yes, I recommend this product.

  24. Dkop1

    Bought as a student, carried into professional life

    I’m an automation technician that bought my AM-570 while I was being apprenticed and attending college. The availability of probe accessories (like alligator clips for the end of probes), micro-amp reading (for sensors) , and non contact- detector built in have proven vastly useful, as well as the ability to hook up a thermocouple. Even after leaving school and being provided with another, more expensive DMM from my employer, this one still lives in my tool bag and gets used the vast majority of the time.

    ✔ Yes, I recommend this product.
